GB Standard

GB Standard

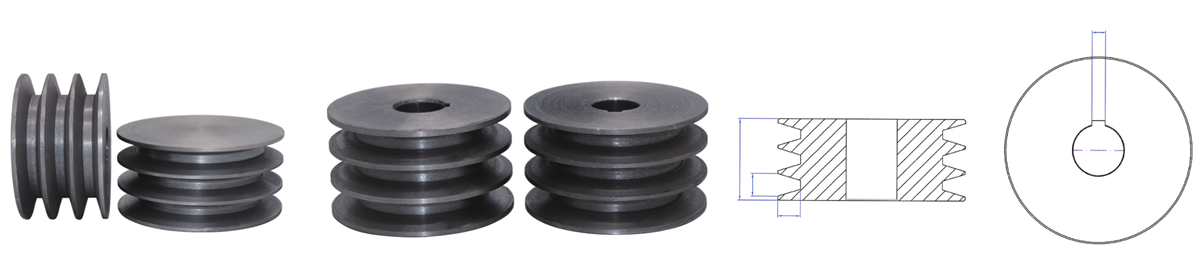

B Series
3 slot flat

Classification:B Series

3 slot flat

  • Basic Properties
    • model

      Number of slots

      Shaft hole

      Inner hole

      80×3B level

      3

      10-28mm

      32mm

      90×3B level

      3

      10-32mm

      38mm

      100×3B level

      3

      10-38mm

      45mm

      110×3B level

      3

      10-38mm

      48mm

      120×3B level

      3

      13-48mm

      55mm

      130×3B level

      3

      15-48mm

      customizable

      140×3B level

      3

      15-48mm

      customizable

      150×3B level

      3

      16-55mm

      customizable

      160×3B level

      3

      16-60mm

      customizable

      180×3B level

      3

      24-65mm

      customizable

      200×3B level

      3

      24-65mm

      customizable

      220×3B level

      3

      24-65mm

      customizable

      250×3B level

      3

      24-65mm

      customizable

      280×3B level

      3

      28-65mm

      customizable

      300×3B level

      3

      28-65mm

      customizable

      Note: Tolerance of outer diameter: 3-3mm, support non-calibration.

  • Product Features
  • High Design
  • Application Area
  • model

    Number of slots

    Shaft hole

    Inner hole

    80×3B level

    3

    10-28mm

    32mm

    90×3B level

    3

    10-32mm

    38mm

    100×3B level

    3

    10-38mm

    45mm

    110×3B level

    3

    10-38mm

    48mm

    120×3B level

    3

    13-48mm

    55mm

    130×3B level

    3

    15-48mm

    customizable

    140×3B level

    3

    15-48mm

    customizable

    150×3B level

    3

    16-55mm

    customizable

    160×3B level

    3

    16-60mm

    customizable

    180×3B level

    3

    24-65mm

    customizable

    200×3B level

    3

    24-65mm

    customizable

    220×3B level

    3

    24-65mm

    customizable

    250×3B level

    3

    24-65mm

    customizable

    280×3B level

    3

    28-65mm

    customizable

    300×3B level

    3

    28-65mm

    customizable

    Note: Tolerance of outer diameter: 3-3mm, support non-calibration.
